Template – Perforated Sheet Calculator

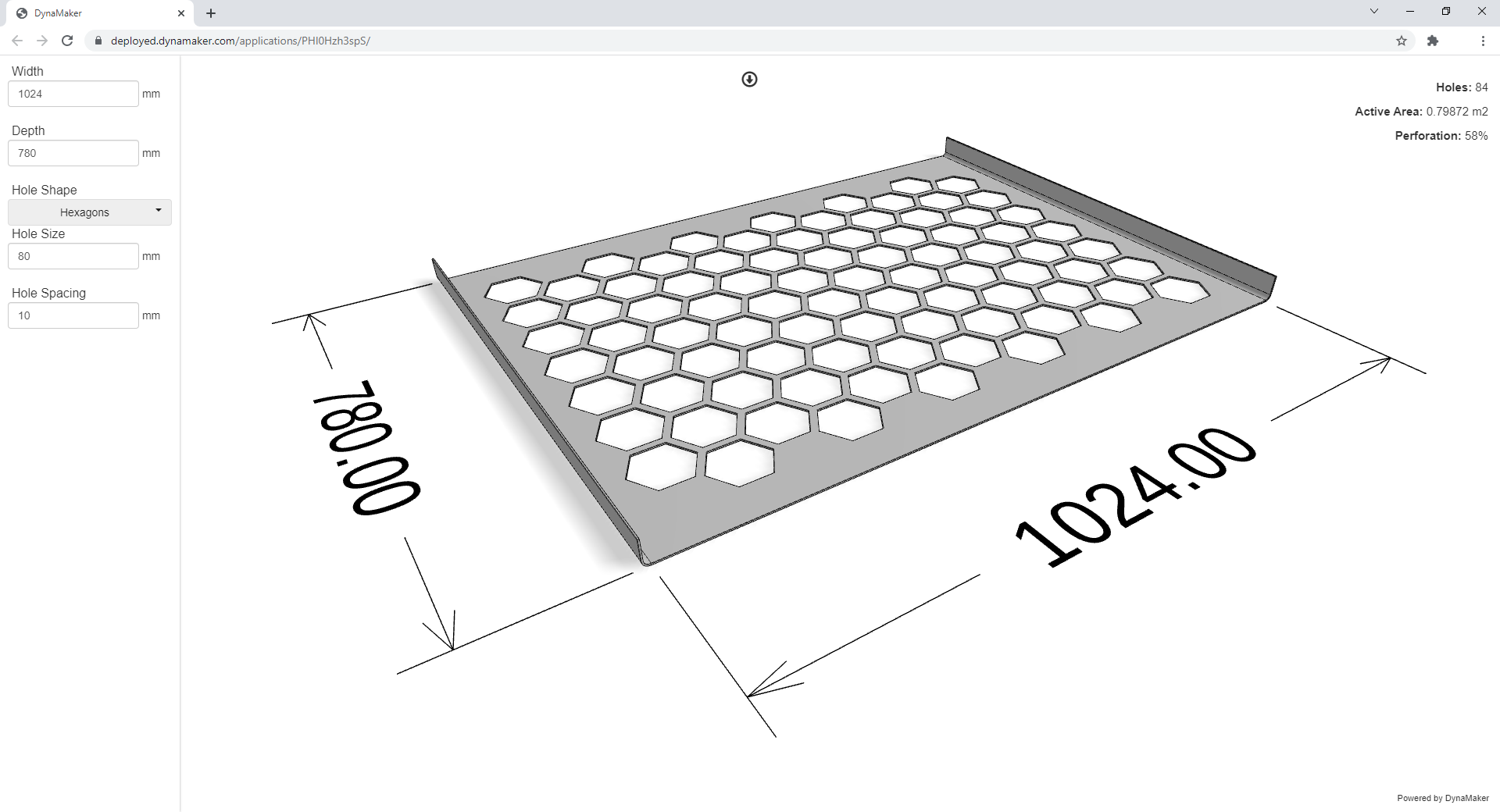

Everything must not be 3D in configuration. Using the power of the 2D geometric CAD engine in DynaMaker it can easily output various hole patterns and shapes that can be downloaded direct by the user, or exported direct to manufacturing.

Formulas computing the area, perforation or other interesting values like pressure loss or strength data can be easily added in the top right of each configurator as a metric.

Want to give it a go, or just know more about the possibilities? Try it out with the button below or contact sales@dynamaker.com to discuss how to get started.
